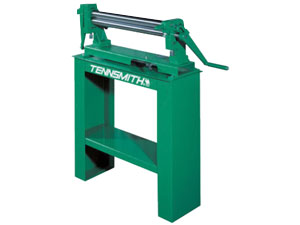

Sheet Metal Equipment l Tennsmith Slip Rolls
![]() |
SR slip rolls combine precision turned, ground and polished rolls with heavy duty cast iron end frames latch and base to make an accurate and durable forming tool. Convenient operating features include large roll adjusting screws, scales for speeding repeat set up and front-mounted handle to lift the upper roll for material removal. Wire grooves are standard. |
||||
Specifications |
SR24 |
SR36 |
SR42 |
SR48 |
Capacity, mild steel |
20 Gauge |
22 Gauge |
24 Gauge |
16 Gauge |
Max. forming length |
24" |
36" |
42" |
48" |
Diameter of rolls |
2" |
2" |
2" |
3" |
Min. forming radius |
1" |
1" |
1" |
1-1/2" |
wire grooves |
3/16",1/4", 5/16" |
3/16",1/4", 5/16" |
3/16",1/4", 5/16" |
3/8",1/2", 5/8" |
Shipping Weight |
190 lbs. |
250 lbs |
270 lbs |
775 lbs |
Export Crate |
13.3 Cu. Ft. |
17.8 Cu. Ft. |
20 Cu. Ft. |
37.9 Cu. Ft. |
Available stands |
37-SR24 |
37-SR36 |
37-SR42 |
37-SR48 |
Shipping Weight |
94 lbs |
120 lbs |
130 lbs |
270 lbs |
